Flanges

Flanges

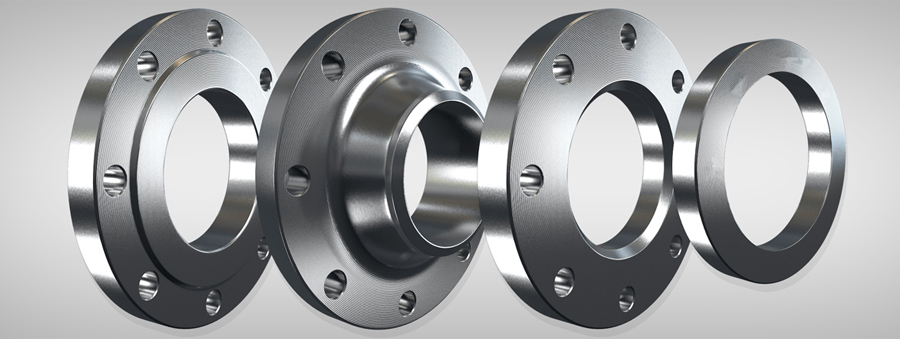

Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers.

Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400

Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss.

Stainless Steel :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H .

Duplex Steel :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.

Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400

Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss

Carbon Steel : ASTM / ASME A 105 , ASTM / ASME A 350 LF 2 .

Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91

Range :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400

Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss

Nickel Alloy :
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) ,UNS 10276 ( HASTELLOY C 276)
ASTM / ASME SB 160 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

Copper Alloy :
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600 , 71500 , C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
ASTM / ASME SB 152 UNS NO C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200

Grades :Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000

Size :1/2"NB to 12"NB

Standard :ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint

Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish

Grades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750

Size : 1/2 inch - 48 inch (15mm - 1200mm)

Standard :ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS

Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint

Features :
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish

Grades :Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Flanges Grade :ASTM A 182 F 304/L; 316/L; 317/L; 309; 310; 321; 347; 904L.

Type :SORF, BLRF, WNRF, SOLJ

Class :50 To 3000
Flanges Range :DN15 Upto DN1800 IN 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS / TABLE 2.5, TABLE 6, TABLE 10, TABLE 16, TABLE 25, TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400

Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint

Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish

Grades :Monel 400, Monel k500

Range :1/2" NB to 60" NB

Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint

Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Chemical resistance
Excellent finish

Specifications
1. Material:Titanium.
2. Grade:Gr2, Gr5, Gr7, Gr9.
3. Standards:DIN,ASTM,BS.

Application:Bicycles,Motors,Chemicals.

Description Standards:DIN,ASTM,BS.

Strength :Superior Quality, Fast delivery, Competitive price as well as humanized after-sales service.

Features :Low density, rustless, good antiwear property, high strength.

Size:Set the size according to the customers' requirements.
